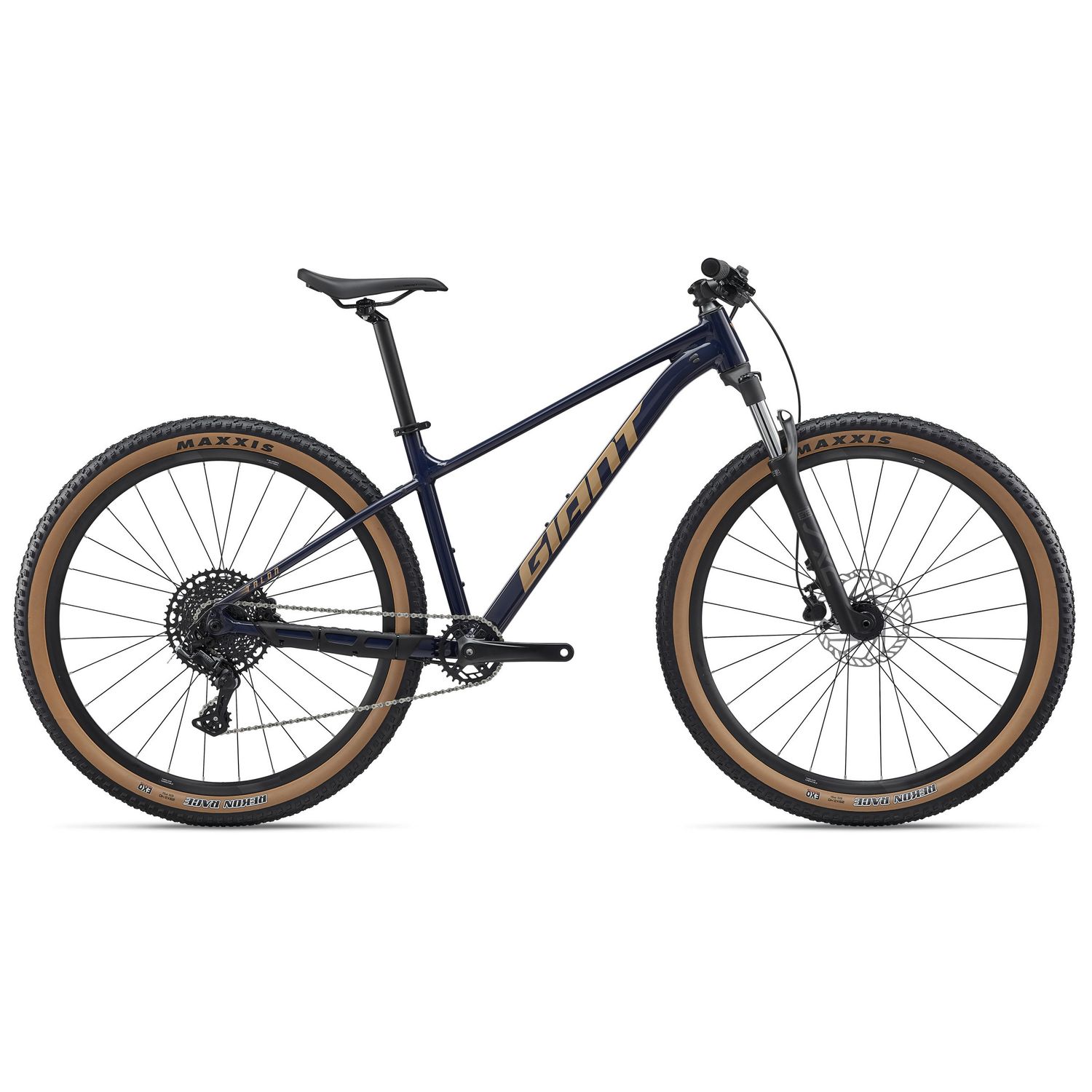

The mountain bike experience starts here. With a redesigned frame that’s now lighter and more durable, along with a smooth-riding suspension fork, thru-axle hubs, and a 1x drivetrain, this aluminum hardtail is everything an aspiring MTB rider needs to evolve and advance.
Modern MTB Design
Tapered fork steerer tubes*, quality components including a 1x drivetrain* with clutch-equipped rear derailleurs, thru-axle hubs*, internal cable routing (including dropper seatpost) and an integrated chainstay protector give aspiring trail riders room to grow. *on select models
Off-Road Control
New geometry is optimized for confident trail riding and two different wheel sizes (27.5 or 29-inch) depending on frame size. The geometry is also designed for front suspension with either an 80mm or 100mm fork depending on frame size. All models have clearance for high-volume tires (up to 2.4-inch) for traction and grip on technical terrain.
Light and Durable
All-new ALUXX aluminum frame features updated shaping and a lighter overall weight for improved performance on off-road terrain.
BIKE SPECS:
-
Frame: ALUXX-grade aluminum, disc
-
Fork: SXC32-3 RL, coil spring, thru axle, steel steerer, 15x110 XS: 80mm travel (27.5) S: 80mm travel (27.5) / 100mm travel (29) M:100mm travel (29) L: 100mm travel (29) XL: 100mm travel (29) XXL: 100mm travel (29)
-
Handlebar: Giant Connect Trail, 31.8mm XS: 690mm (27.5) S: 690mm (27.5) / 750mm (29) M: 780mm (29) L: 780mm (29) XL: 780mm (29) XXL: 780mm (29)
-
Grips: Giant Sole-O
-
Stem: Giant Sport, 7-degree XS: 40mm (27.5) S: 50mm (27.5) / 50mm (29) M: 60mm (29) L: 70mm (29) XL: 80mm (29) XXL: 90mm (29)
-
Seatpost: Giant Sport, 30.9 XS: 350mm (27.5) S: 350mm (27.5) / 375mm (29) M: 375mm (29) L: 375mm (29) XL: 420mm (29) XXL: 420mm (29)
-
Saddle: Giant ErgoContact Trail
-
Pedals: MTB caged
-
Shifters: microSHIFT Advent, 1x9
-
Rear Derailleur: microSHIFT Advent, RD-M6195M, 1x9, clutch
-
Brakes: Tektro HDC M275, hydraulic, Tektro rotors [F] 180mm, [R] 160mm
-
Brake Levers: Tektro HDC M275
-
Cassette: microSHIFT, CS-H093, 11-46, 9-speed
-
Chain: KMC X9
-
Crankset: ProWheel Charm, w/ Steel C.Ring, O Chain Guard, 52.5mm chainline XS: 165mm (27.5) S: 165mm (27.5) / 170mm (29) M: 170mm (29) L: 170mm (29) XL: 175mm (29) XXL: 175mm (29)
-
Bottom Bracket: FP-B902W
-
Rims: Giant GX03V 29/27.5, 6061 aluminum, double wall, 21mm inner width, disc, 28h
-
Hubs: [F] Giant Tracker Hub, M9202-F, 6-bolt rotor mount. [R] Giant Tracker Hub, M9201-R, microspine body, HG type. 15x110 TA F / 12x142 TA R
-
Spokes: stainless, 14g
-
Tires: Maxxis Rekon Race 29x2.2 / Maxxis Rekon 27.5x2.4, 60 TPI, wire bead
-
Max Tire Clearance: 2.4" max tire size
-
Max Chainring Size: 32T
