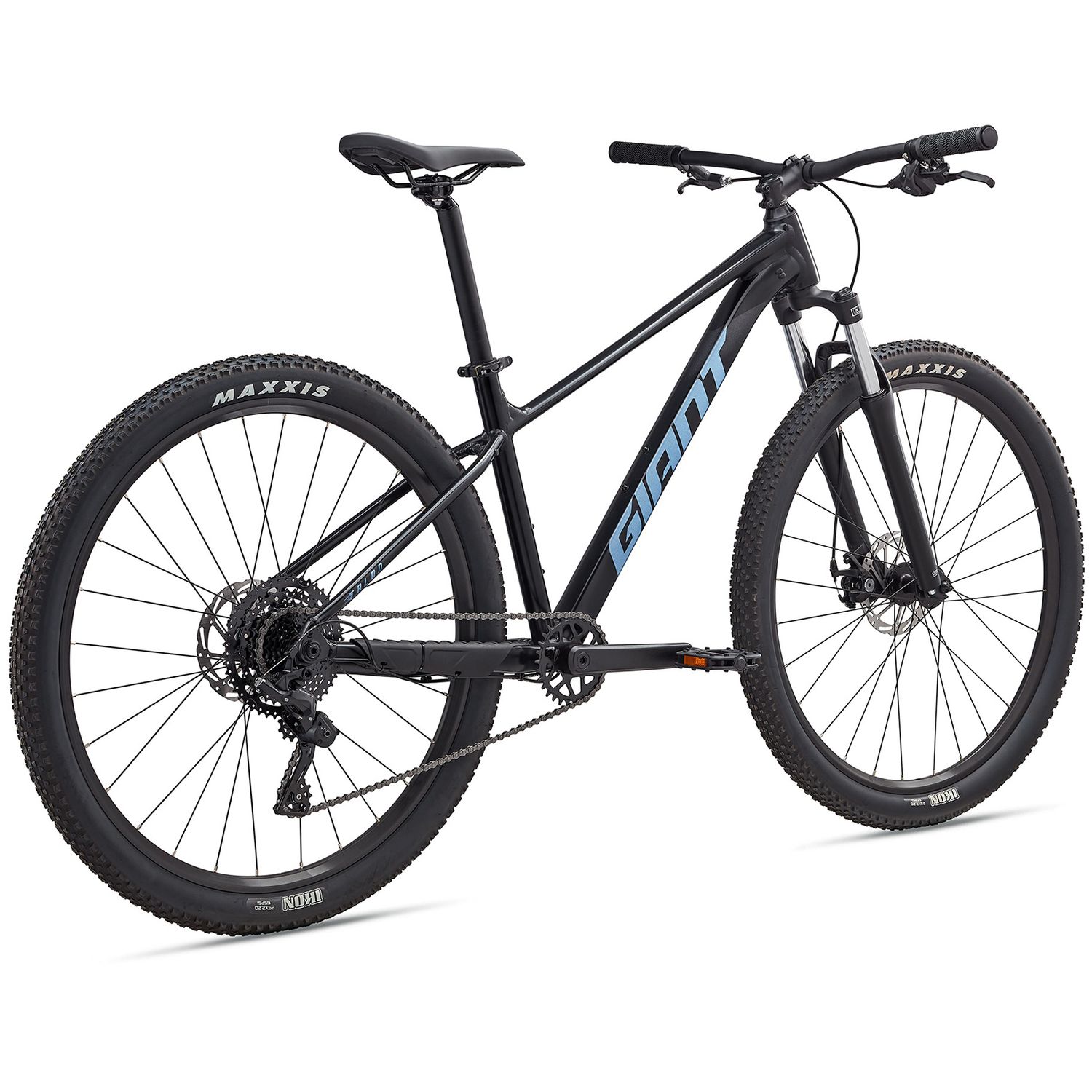

Giant Talon 4 Black
Modern MTB Design
Tapered fork steerer tubes*, quality components including a 1x drivetrain* with clutch-equipped rear derailleurs, thru-axle hubs*, internal cable routing (including dropper seatpost) and an integrated chainstay protector give aspiring trail riders room to grow. *on select models
Off-Road Control
New geometry is optimized for confident trail riding and two different wheel sizes (27.5 or 29-inch) depending on frame size. The geometry is also designed for front suspension with either an 80mm or 100mm fork depending on frame size. All models have clearance for high-volume tires (up to 2.4-inch) for traction and grip on technical terrain.
Light and Durable
All-new ALUXX aluminum frame features updated shaping and a lighter overall weight for improved performance on off-road terrain.
BIKE SPECS
- FRAME: ALUXX-grade aluminum, disc
- FORK: SR Suntour XCE, QR, steel steerer, XS, S: 80mm travel (27.5), S, M, L, XL,XXL:100mm travel (29)
- HANDLEBAR: Giant Connect Trail, 31.8mm
- GRIPS: Giant Sole-O
- STEM: Giant Sport, 7-degree
- SEATPOST: Giant Sport, 30.9
- SADDLE: Giant ErgoContact Trail
- PEDALS: platform
- SHIFTERS: microSHIFT Acolyte, 1x8
- REAR DERAILLEUR: microSHIFT Acolyte, RD-M5185M with clutch
- BRAKES: Tektro TKB-172, mechanical, [F]160mm, [R]160mm rotors
- BRAKE LEVERS: Tektro RS360A
- CASSETTE: microSHIFT Acolyte, 8-speed, 12x46
- CHAIN: KMC 8.3
- CRANKSET: ProWheel, [27.5] 32t, [29] 30t, 52.5mm chainline 32t
- BOTTOM BRACKET: cartridge
- RIMS: Giant GX03V 27.5 or 29, alloy, double wall, 21mm IW
- HUBS: alloy, sealed bearing, [F] 9mm QR, [R] 12x142 thru-axle
- SPOKES: stainless
- TIRES: Maxxis Ikon 27.5x2.2 or Maxxis Ikon 29x2.2, 60 TPI, wire bead
- EXTRAS: 2.4" max tire size, max chainring 32t
