AMFLOW PL Carbon

$10,399.00

The Amflow PL electric mountain bike offers 1000 watts of peak power in an ultra-light build weighing 19.2 KG (42 lbs).  With its unrivaled combination of power, range, weight, and intelligent features, this groudnbreaking eMTB is built for trailblazers.

The Avinox M1 Drive Unit features a compound planetary gearset with an industry-leading power-to-size ratio. The durable, high-strength polymer material inside the M1 Drive Unit effectively suppresses noise during high-speed gearbox operation. With multiple precision sensors built-in, combined with advanced algorithms, it provides a strong, smooth assistance for a wide range of scenarios and conditions.

5 Modes, Effortless Assistance

  • Auto mode adapts assistance in real-time. Activate Boost mode to instantly get 120 N·m of torque assistance.

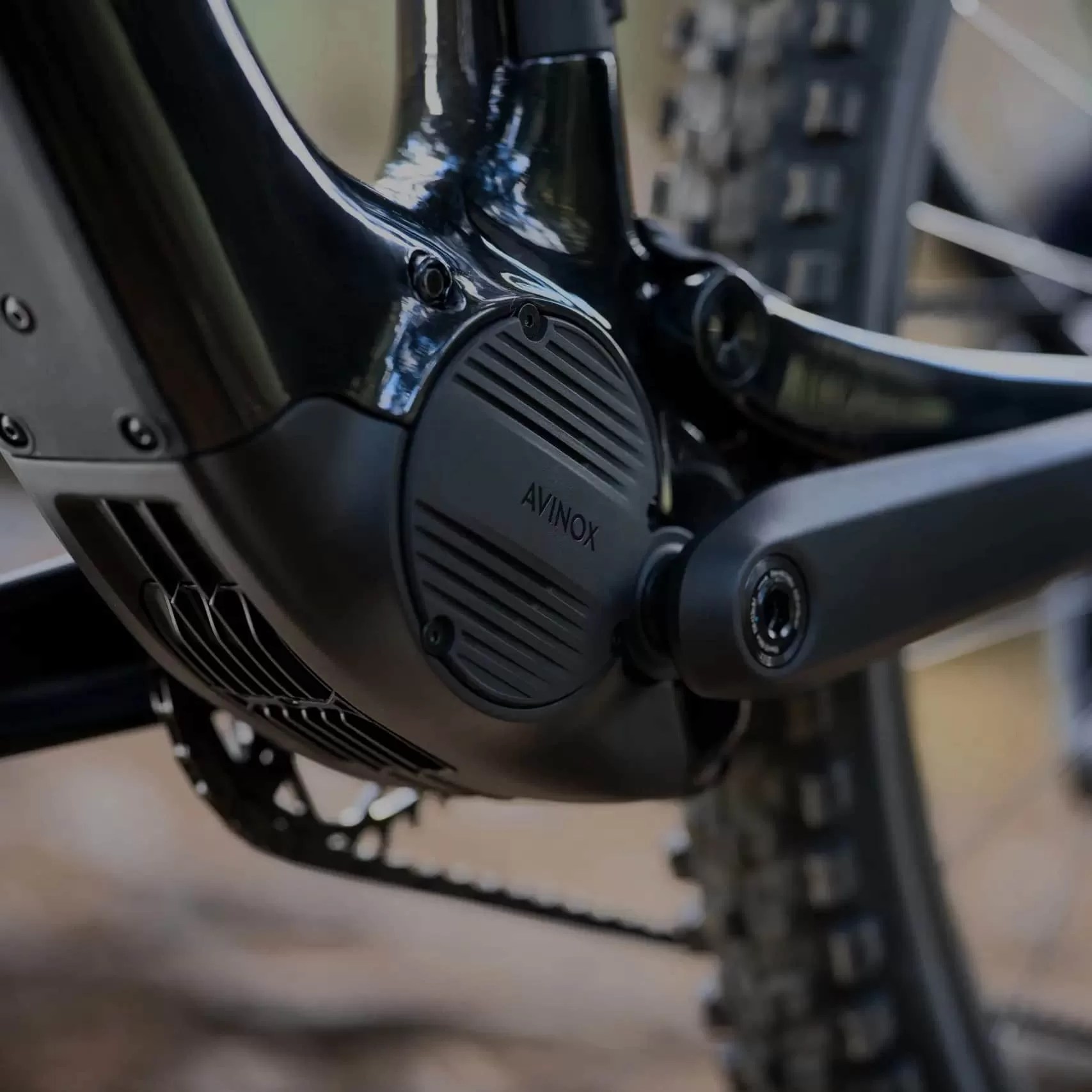

Light Motor, Powerful Drive

  • The 2.52kg motor delivers 105N·m continuous torque. Strong and durable polymer material effectively suppresses noise.

Ultra-Light Streamlined Frame

  • The 19.2kg build uses an ultra-light carbon fiber frame that weighs just 2.27 kg, for breathtaking speed and agility.

800Wh Batt., 3x Fast Charging

  • Using the Avinox Drive System that provides battery with a maximum capacity of 800 Wh, the bike can reach a range of 157 km.

Versatile Geometry

  • Amflow PL’s frame design features a 64.5° head tube angle, a 445mm chainstay length, and a 77° seat tube angle, offering balanced performance

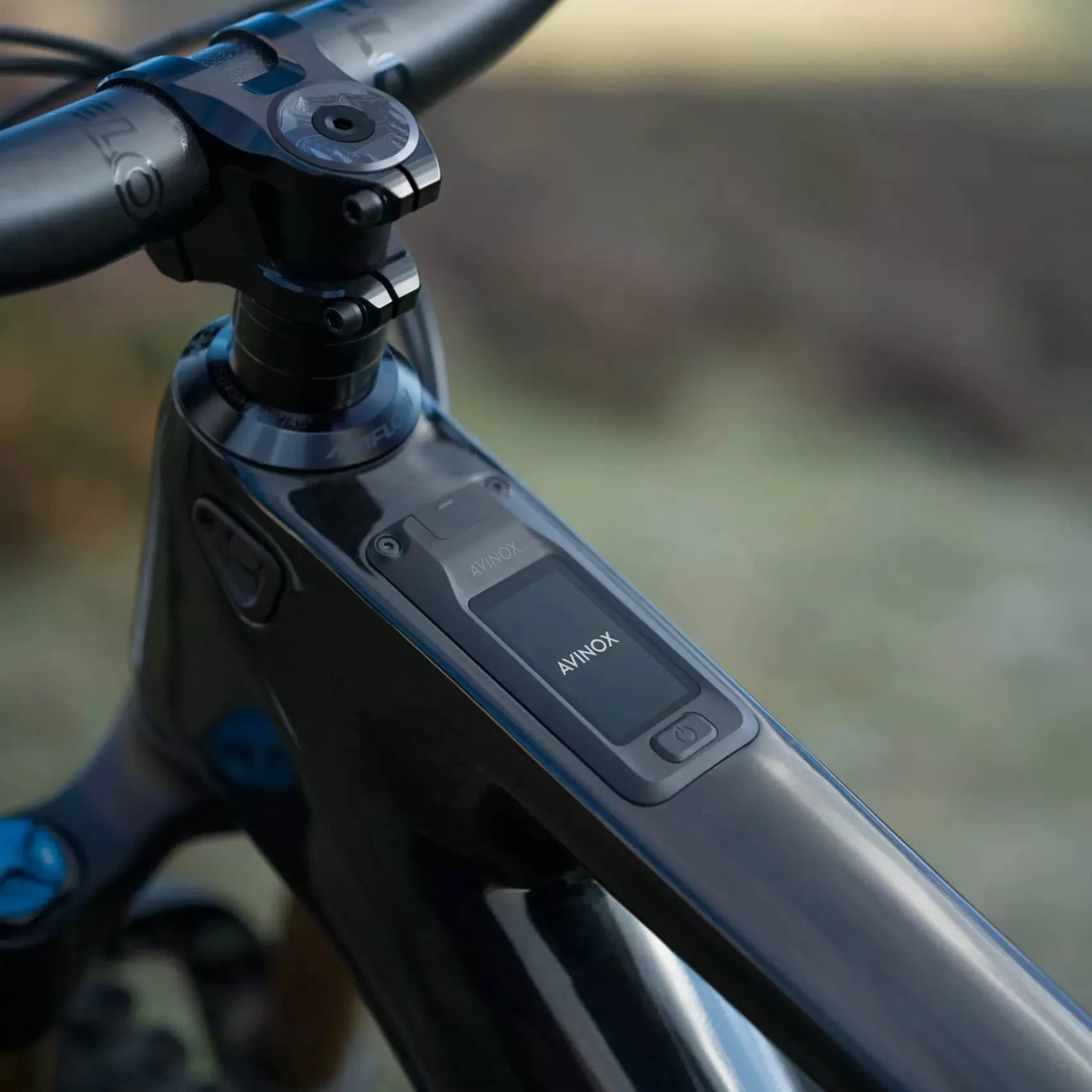

Built-in Touchscreen Display

  • The 2-inch full-color OLED touchscreen offers real-time ride data and range. Paired with the Avinox app, it offers remote locating features.

Intelligent Walk Assist

  • Walk Mode features Auto Hold to prevent rollback on slopes as well as Hill Start Assist and stationary gear shifting for a smooth experience.

E-Bike Specs

Motor: Avinox M1 Drive Unit: 105 N·m

Display: Avinox Screen: 2-inch OLED Control Display

Battery: Avinox Integrated Battery: 800Wh

Controller: Avinox Wireless Controllers: Right and left sides

Charger: Avinox Fast Charger: 12A/508W

Bike Specs

Frame: Amflow PL Carbon Frame, 150 MM Travel, 27.5″ and 29″ compatible rear wheels

Fork: 2026 FOX 36 Performance 160mm travel, GRIP Damper, 15×110mm, 44mm rake

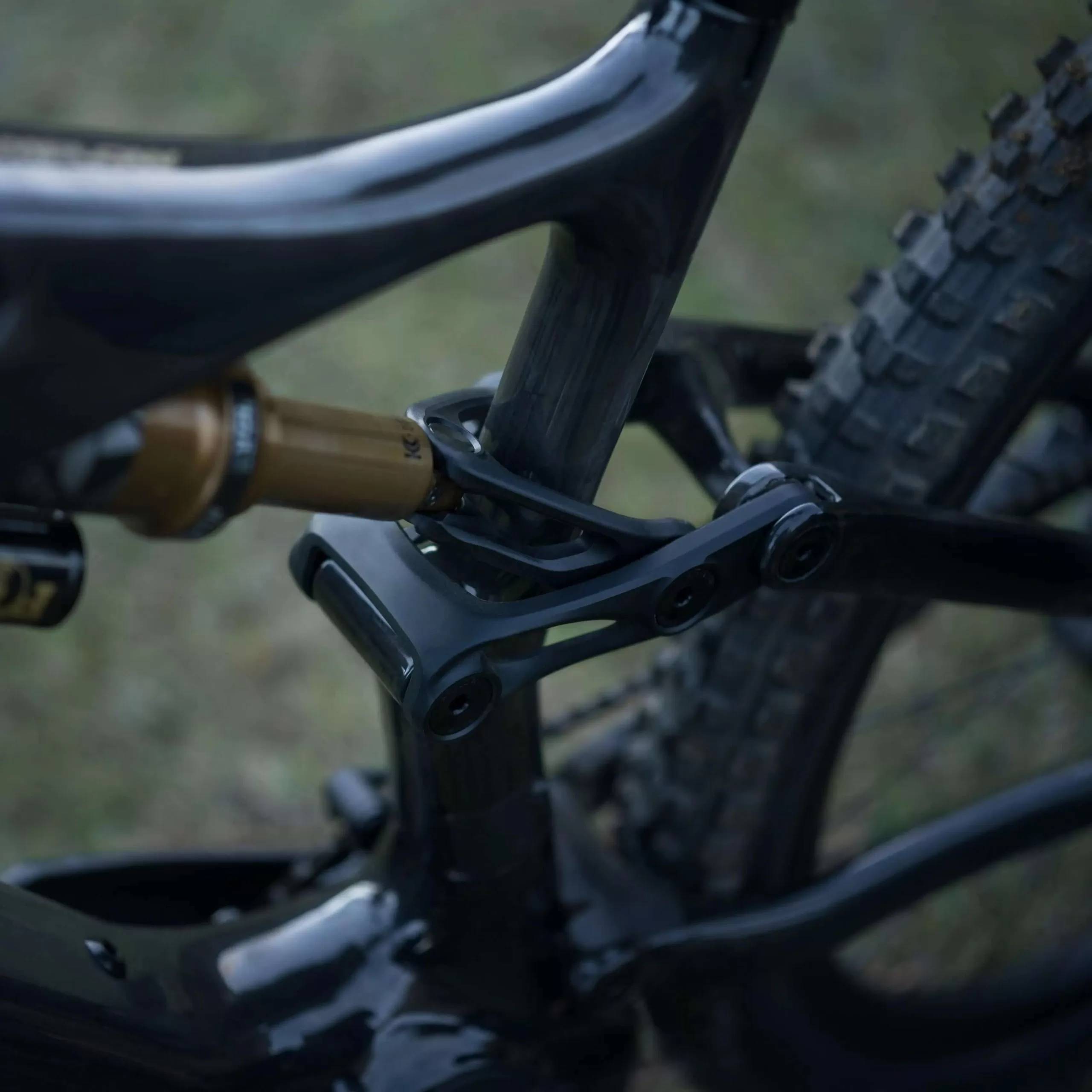

Rear Shock: 2026 FOX Float Performance, Trunnion (185×55mm), custom tune, EVOL Air sleeve, 2-position lever

Rear Derailleur: SRAM Eagle 70 Transmission Derailleur

Chainring: SRAM Eagle Transmission E-MTB Chainring 104BCD 34T

Shift Levers: SRAM Eagle 70 Transmission Shifter | Single Click

Cassette: SRAM XS-1270 Eagle Transmission 10-52T

Chain: SRAM Eagle 70 Transmission Flattop Chain

Crankset: Avinox SL Crank (M/L: 155mm; XL/XXL: 160mm)

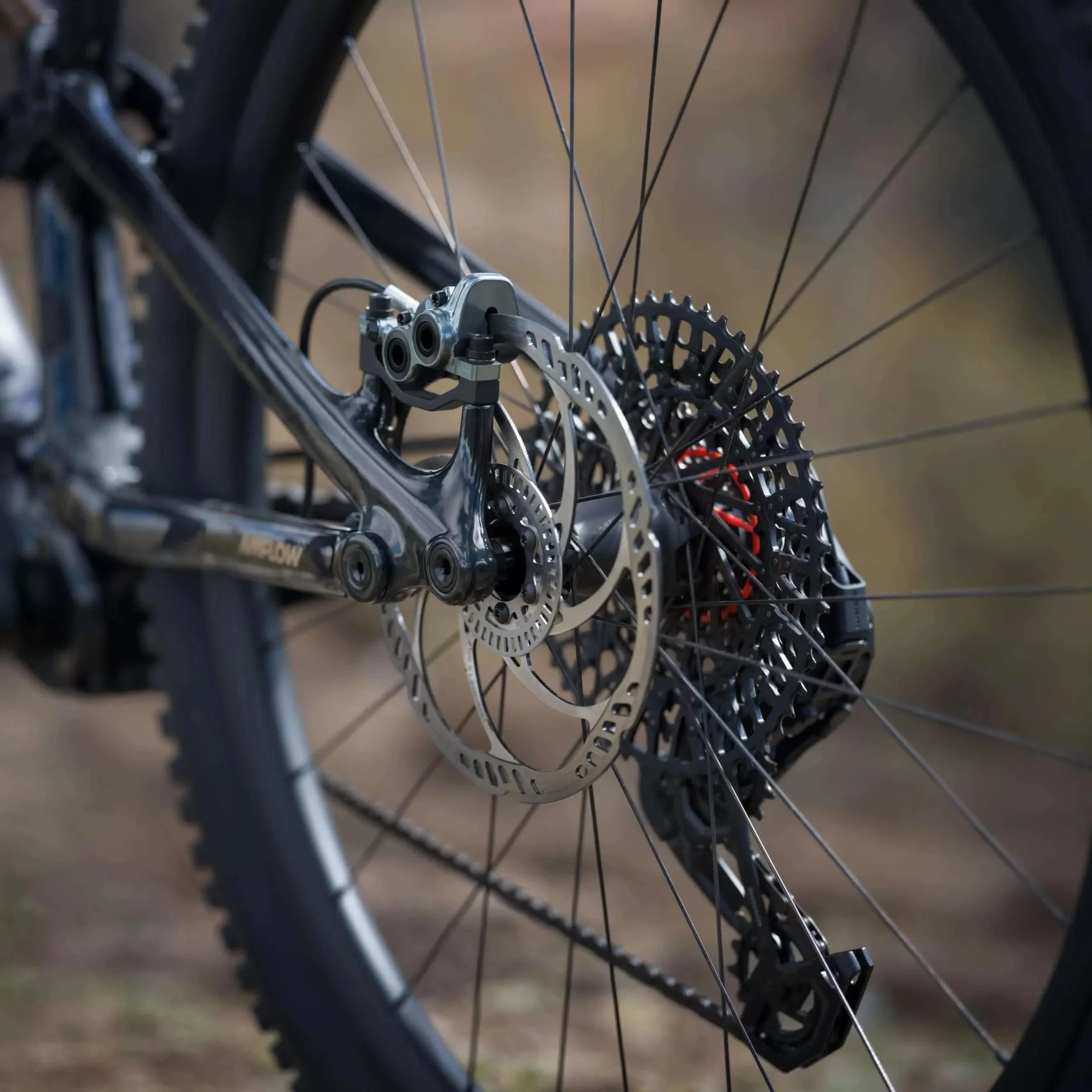

Brakes: Magura MT5 hydraulic disc brake, HC lever, 4-piston caliper w/ Shiftmix 3, 203mm MDR-C Rotor (front and rear)

Wheels: Amflow HMA-30

Rims: Alloy, 29”, 30mm internal width, 32H, tubeless ready

Spokes: SAPIM E-Light J-bend

Front Hub: Alloy, 2 sealed cartridge bearings, 15×110mm thru-axle, 32h, 6-bolt

Rear Hub: Alloy, 4 sealed cartridge bearings, 148×12mm thru-axle, 32h, 6-bolt, 21T

Front Tire: Maxxis Assegai MaxxTerra 29×2.5″ WT 3C EXO E-25 TLR

Rear Tire: Maxxis Dissector MaxxTerra 29×2.4″ WT 3C EXO+ E-25 TLR

Handlebar: Amflow Enduro Alloy Handlebar, 35mm rise, 800mm wide, 5-degree upsweep, 9-degree backsweep

Grips: Amflow Enduro Grips

Stem: Amflow Enduro Stem, One-piece CNC, Length: 35mm, Clamping diameter: 35mm

Saddle: Selle Royal SRX Plus

Seat Post:  KS Rage-i (M: 150mm, L: 170mm, XL/XXL: 190mm)

Accessories

  • Quick Start Guide

  • Torque Wrench (3~25 N·m, Hex 2/3/4/5/6mm, Torx® 25)

  • Shock Pump

  • Front and Rear Lights
